LINCOLN METERING DEVICE SSVM 8, 619-37044-1

1,268.00 zł Netto (1559.64 brutto)

LINCOLN METERING DEVICE SSVM 8,

Catalogue number: 619-26761-1

Ask about the product

LINCOLN METERING DEVICE SSVM 6,

Catalogue number: 619-37044-1

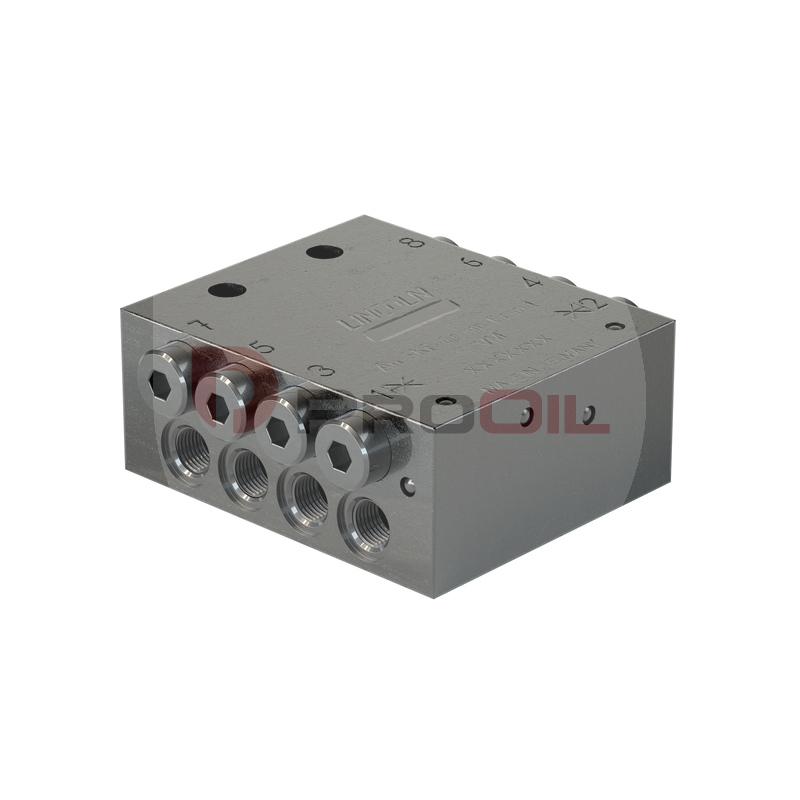

SSVM metering devices in block design

For use in progressive lubrication systems

SSVM type metering device is a compact single block progressive piston-type metering device. For direct mount of fittings with no need of any sealing in-between. Specially designed for small output needs, small spaces due to its small dimensions and short distances. Available with pin indicator for visual system monitoring.

Features and benefits

Small and compact size for applications where space is restricted
Internal combining of outlets
Exact lubricant metering
Available with visual pin indicator

Applications

Printing industry
Wood processing machines
Material handling machines

Max working pressure	200 bar
Min working pressure	20 bar
Number of outlets	8
Mounting position	any
Input thread	G1/8
Ouput thread	M8 x 1
Tubes	Ø 4
Dosing volume per stroke and outlet cm3	depends on used screw
Material	Zinc Plated Black
Operating temperature range	-25 do + 70
